Panasonic DMC FX520 Digital Camera
10 Megapixel , 5x Leica Optical Zoom, 3.0" Touch Screen LCD, Optical Image Staibilizer

Features | Standard Accessories | Technical Specification | Latest Prices | Buy Now

Panasonic's Lumix series of compact digital cameras have been a popular choice amongst consumers, and its popularity will rise even further with their first touch-screen enabled Lumix DMC-FX520.

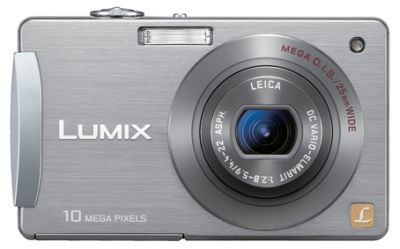

Panasonic Lumix FX520 Digital Camera

The DMC-FX520 has a 25mm ultra-wide angle Leica DC lens, 5x optical zoom and manual operation control which gives users greater creative freedom. Its intuitive touch-screen operation on its large, 3.0-inch LCD provides an advanced hybrid control system with both touch-screen and with joystick. In addition, The LUMIX DMC-FX520 features an array of advanced functions - including Panasonic's revolutionary Intelligent Auto (iA) mode, HD motion picture recording with HD component output, and slideshows complete with music - to enrich the camera's user experience.




Salient Features of Panasonic DMC FX520

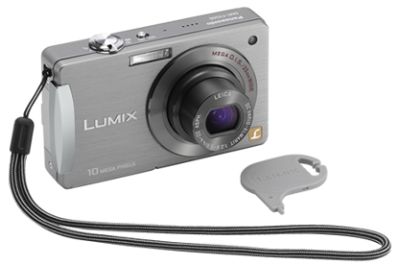

Panasonic Lumix FX520 Digital Camera

25mm Ultra-Wide-Angle 5x Optical Zoom (25-125mm) f2.8 High-Quality Leica DC Lens and 10.1-Megapixel CCD
The 10.1-megapixel FX520 boasts a 25mm Leica DC VARIO-ELMARIT high-quality lens with 5x optical zoom, offering f2.8 brightness. Comprising 7 elements in 6 groups, including 4 aspherical lenses with 6 aspherical surfaces, this advanced lens unit surpasses Leica's stringent standards and delivers exceptional optical performance. Newly developed unevenly thick concave meniscus aspherical lens with high refractive index, allows the 25mm ultra-wide-angle to achieve high optical performance, encompassed in a slim design and lens unit. The 25mm ultra-wide-angle lens records almost double the viewing space at the same shooting distance compared to other ordinary 35mm cameras and in 3-megapixel resolution mode, the Extra Optical Zoom function provides additional magnification, extending the zoom capacity to 8.9x by using the central part of the CCD.

** When the picture size is set to 3 megapixels or larger, the photo is automatically resized to 3 megapixels. When the lens is shifted back to the wide-end, the picture size is set to the original size automatically. The original size is maintained for photos smaller than 3 megapixels.

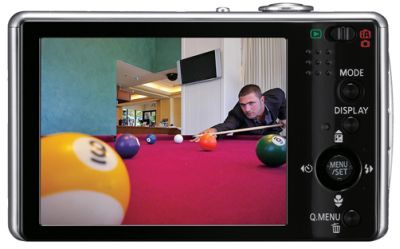

Advanced Touch 3.0-inch intelligent LCD with 230,000-dot high resolution for easy shooting and playback
The FX520 incorporates a large Touch 3.0-inch, 230,000-dot high-resolution LCD screen for clear playback of shots and footage. Intelligent LCD function detects light conditions and automatically adjusts LCD backlighting (a maximum of 40% when shooting outdoors in bright sunshine and by adjusting frame rates when shooting in low-lit situations) as well as using the pixel mixed readout method to ensure the clearest possible image is captured. Detecting precise lighting conditions and automatically controlling brightness levels with a total of 11 steps, allows this function to produce the clearest possible image in any situation.

The High Angle mode makes the LCD screen extremely easy to view when the camera is held high, for example when shooting over a crowd.

Great Photos Everytime - Intelligent Auto Technology
Panasonic incorporated the Intelligent Auto mode in pursuit of the ultimate ease of operation and the reduction of misshots. Mega O.I.S. (Optical Image Stabilizer) to compensate for hand-shake and Intelligent ISO Control to detect and suppress motion blur are built into all Lumix cameras, as the industry's most advanced countermeasures against blurring. Both image stabilizing technologies have been further advanced in detection accuracy and correction effect thanks to the new image-processing LSI, Venus Engine IV.

Panasonic Lumix FX520 Digital Camera

In addition to these two paramount anti-blurring technologies, Panasonic continues pursuing the ideal that anyone at any technical level of photography should be able to take beautiful pictures with ease, by incorporating the Intelligent Auto mode. Increasing the number of scene modes is one thing and taking advantage of them is another, and that's where the Intelligent Scene Selector comes in. It automatically sets the appropriate scene mode according to the scene you're going to take from among the most frequently used scene modes, such as Portrait, Scenery, Macro, Night Scenery and Night Portrait mode. The Face Detection system helps the camera to recognize human faces and to focus and set the exposure automatically. Up to 15 faces can be recognized simultaneously. The Quick AF system allows the camera to keep focusing on the subject even without pressing the shutter button halfway, to get the best results from every shooting opportunity by minimizing the AF time.

These multi-capable functions happen automatically, so you can shoot without the bother of adjusting settings every time conditions change - the powerful Intelligent Auto Mode does all the work for you. You can enjoy easy, trouble-free shooting in any situation and get the satisfaction that comes with capturing clear, beautiful images.

Intelligent Exposure - Corrects Exposure Automatically.
Newly incorporated into the FX520 Intelligent Auto Function is Intelligent Exposure that increases exposure only in under-exposed areas by detecting the brightness level part-by-part in the picture. For example if the background of an image includes sky, the FX520 automatically adjusts the aperture and shutter speed to keep the setting slightly under-exposed. This prevents a washed-out,dullness common with some cameras, as it brightens the area by only increasing the ISO in that area. If the background of an indoor portrait receives insufficient lighting from a flash and becomes dark, the ISO sensitivity is raised only in the low-lit area to make the image brighter without causing graininess in the subject's face, resulting in a well balanced picture.

The multi-capable functions are automatic and allow for shooting without the bother of adjusting the settings every time conditions change as the powerful Intelligent Auto Mode does all the work.




Standard Accessories for Panasonic DMC FX520

  • Panasonic DMC FX520 Digital Camera
  • Lithium-ion battery pack
  • USB Cable
  • Video Cable
  • Software CD
  • Manual






Panasonic Lumix FX520 Digital Camera

Technical Specifications for Panasonic DMC FX520
Lens Type LEICA DC VARIO-ELMARIT / 7 elements in 6 groups (5 Aspherical Lenses / 6 Aspherical surfaces)
Image Stabiliser Yes
Image Stabiliser Operational Modes MEGA O.I.S. (Mode1/Mode2)
Aperture F2.8/5.6
Auto Focus Yes
Optical Zoom (x) 5.00
Digital Zoom (x) 4
Focal Length f = 4.4-22mm (35mm Equiv.: 25-125mm)
Optical Zoom Minimum Range (mm), 35mm Equivalent TBC
Optical Zoom Maximum Range (mm), 35mm Equivalent TBC
Focusing Area Normal: 50cm-Infinity, Macro/Intelligent Auto: 5cm (W) / 100cm (T)
Focus Modes Auto Focus System, Normal/Macro, Touch AF, Quick AF On/Off, AF Tracking
Macro Function Minimum Focusing Distance (mm) TBC
Image Sensor Size (Inches) 1/2.33
Total Pixel Count (megapixels) 10.70
Effective Pixel Count (megapixels) 10.10
Maximum Horizontal Resolution (pixels) 3648
Maximum Vertical Resolution (pixels) 2736
ISO Sensitivity Modes Auto
Maximum Sensitivity (ISO Rating) 6400
LCD Monitor Screen Size (Inches) 3.00
Auto Angle Detection TBC
View Finder Size (inches) No seperate View Finder - the LCD Monitor becomes the View Finder.
Exposure Modes Program AE, Aperture Priority AE, Shutter Priority AE, Manual
Exposure Compensation 1/3 EV Step, -2 -+2EV
Auto (AE) Bracketing ±1/3EV-1EV Step, 3 frames
Light Metering Intelligent Multiple, Spot (Spot Mode), Center-Weighted
White Balance Modes Auto, Daylight, Cloudy, Shade, Halogen, White Balance Adjustment: ±10 steps (except Auto)
Picture Adjustment Modes / Film Modes Contrast, Sharpness, Saturation, Noise Reduction
Mode Dial/Scene Modes Auto, P. A/S/M (menu selectable), Motion Picture, Sports mode, Portrait, Self Portrait, Night Portrait mode, Baby mode, Soft Skin mode, Scenery mode, Night Scenery mode, Food mode, Party mode, Fireworks mode, Snow mode, Starry Sky mode, Candle mode, Pet, Sunset, Beach, Aerial Photo, High Sensitivity, Hi Speed Burst
Colour Effect Modes Cool, Warm, Black & White, Sepia
Recording Image Size Modes 4:3 Ratio Formats:, 3648 x 2736 pixels, 3072 x 2304 pixels, 2560 x 1920 pixels, 2048 x 1536 pixels, 1600 x 1200 pixels, 640 x 480 pixels, 3:2 Ratio Formats:, 3072 x 2048 pixels, 2560 x 1712 pixels, 2048 x 1360 pixels, 16:9 Ratio Formats:, 3648 x 2056 pixels, 3072 x 1728 pixels, 2560 x 1440 pixels, 1920 x 1080 pixels
Image Quality Modes Fine, Standard
Shutter Speed Range Manual: 60-1/2000 sec., Starry Sky Mode: 15,30,60 sec
Shutter Lag Time (milliseconds), Full Auto Focus TBC
Movie Function Modes (Quick Time TM Motion JPEG)1 30 or 10 fps (16:9 Aspect Ratio: 848 x 480 pixels), 30 or 10 fps (4:3 format: 640x480 / 320x240 pixels, 16:9 format: 848x480 pixels), HD 30 or 15 fps (16:9 Aspect Ratio: 1280 x 720)
Movie Function Yes
Burst Shooting Mode Full Resolution Image, 2.5 frames/sec; Max. 5 frames (Standard Mode), Max. 3 images (Fine Mode)
USB Webcam Function TBC
Voice Recording (Audio Dubbing) Yes
Audio Dubbing Record Time TBC
Still Image Rec. with Audio time limit TBC
Microphone Yes
Inbuilt Speaker(s) Yes
MP3 Playback TBC
Self Timer Yes
Self Timer Modes 10 sec., 2 sec.
Onboard Erase Function Yes, Single/Multi/All
Inbuilt Flash Yes
Red Eye Reduction Yes
Built in Flash Modes Auto/Red-eye Reduction, Slow Sync./Red-eye Reduction, Forced On/Off
External Flash Capabilty None
On-Board Memory (MB) 50.00
Included Recording Media No
Compatible Memory Card Type(s) SD Card (TM), SDHC Card (TM), Multi-Media Card (TM)
PictBridge Compatible Yes
A/V Output HD AV OUTPUT, USB 2.0 High Speed, DC Input, AV Output (NTSC/PAL)
USB Connectivity Yes
Power (Battery) Lithium-ion battery pack (3.6V, 1000mAh)
Power (Mains) AC Adaptor (Input: 110-240V AC) (Optional)
Battery Life 280 pictures (CIPA Standard)
Height (mm) 57.10
Width (mm) 94.90
Depth (mm) 22.90
Weight (g) 143.00
Country of Assembly Japan
Warranty 1 Year Manufacturers Warranty
